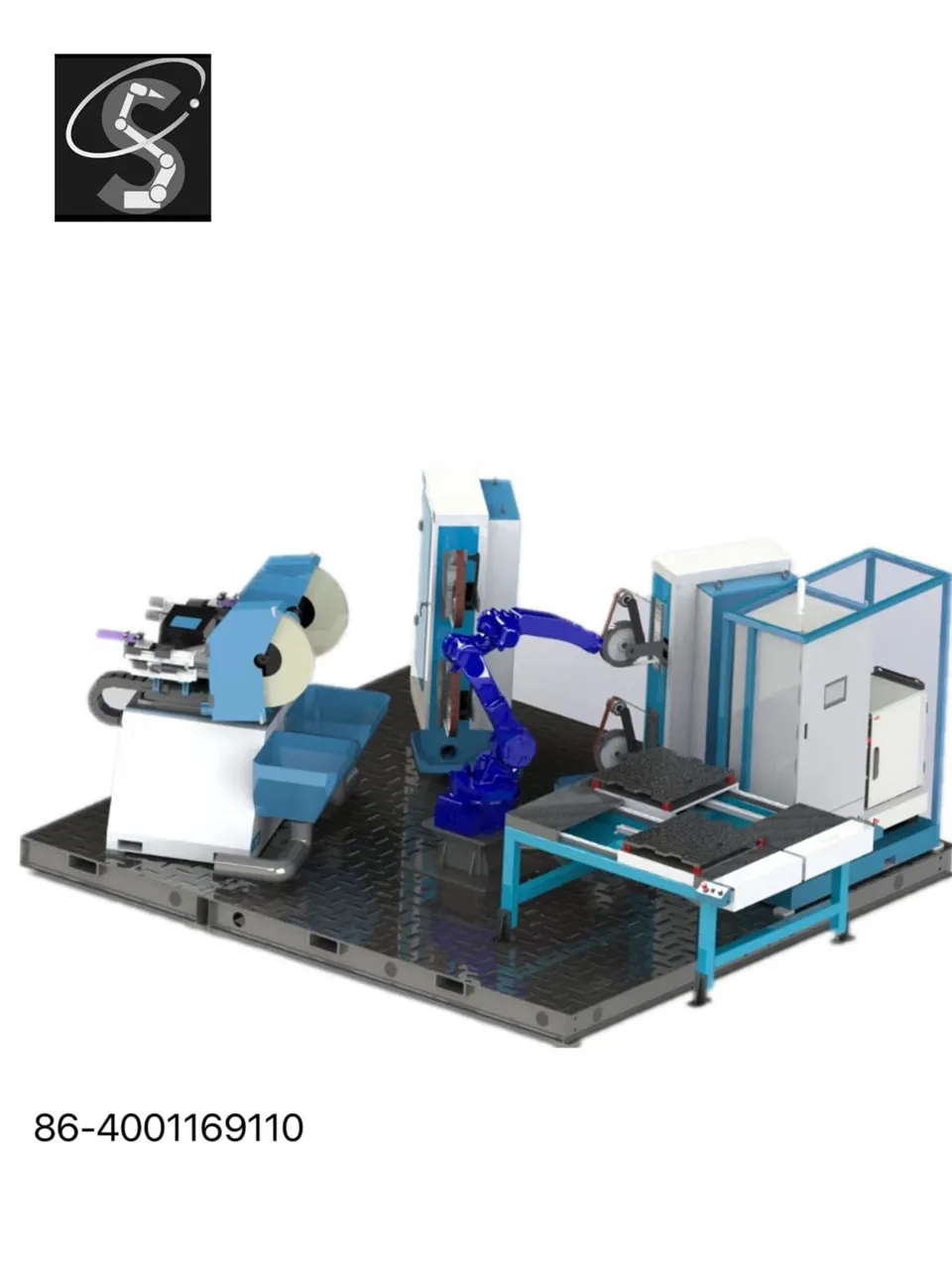

Robot one-stop polishing and deburring workstation configuration: 1 robot, 1 loading platform, 4 single station sanding belt machines, 1 dual station polishing machine/1 single station polishing machine
Power: 32KW
characteristic:
1. Flexible sanding belt machine: with automatic speed regulation and floating compensation function, it can adapt to the grinding of large surfaces and complex corners of workpieces
2. Dual station polishing machine: automatic speed regulation, floating compensation function, automatic waxing compensation mechanism, polishing wheel wear compensation mechanism, which can prevent both hemp wheels and cloth wheels at the same time:
3. Loading mechanism: upper and lower slide tables/left and right alternating slide tables/rotating loading tables. Multiple workpieces can be stored on both sides of the material tray, and can be loaded at once to meet a processing time of ≥ 1 hour. The specific loading frequency is determined according to the workpiece process:
4. Robot load: ≥ 20Kg
Suitable for: requiring 4 layers of sand, 1 layer of hemp wheel, and 1 layer of cloth wheel
